DB-HM80SSD-E |
Oil Leak Prevention Optimized for Data Center EnvironmentsDB-HM80SSD-E (CrushBox Series) Designed for high-cleanliness and
24/7/365 mission-critical operation environments such as data centers, the DB-HM80SSD-E incorporates three independent oil leak prevention measures in its hydraulic system.
These features minimize the risk of oil dispersion around equipment or contamination in rack areas, ensuring safe and reliable long-term operation as a high-security physical destruction
device.1. Metal Piping System for Hydraulic Lines All hydraulic lines use metal piping instead of conventional resin hoses — the optimal choice for data center temperature and pressure
conditions.
→ Dramatically lowers the probability of oil leaks during extended operation2. Secondary Containment Sheet for Leak PreventionIn the unlikely event of minor internal leakage from the hydraulic unit, a dedicated oil absorption sheet installed inside the enclosure instantly absorbs and retains the oil, preventing any external leakage.
→ Fully compliant with data center cleanliness and environmental maintenance standards3. Openable Inspection Window System An tool-free, openable inspection window is installed on the side of the enclosure, allowing quick visual checks of the hydraulic unit’s internal condition at any time.
→ Reduces operational workload for maintenance teams and enables early intervention to ensure continuous stable operation Summary: “Zero Oil Leak Defense” Design Optimized for Data Centers
Recruiting Corporate Partners in Taiwan (Republic of China)! — Patent Obtained for HDD/SSD Physical Destruction Management Software —
- Regulatory Environment: Taiwan’s Personal Data Protection Act (PDPA) requires businesses handling personal data to implement appropriate security measures and secure disposal (data destruction). Demand for physical destruction methods (shred/crush/degauss) is particularly high in finance, healthcare, government, and tech sectors.
- Number of Enterprises: As of 2024, SMEs account for approximately 1.72 million companies (over 98% of all enterprises) and employ about 79% of the workforce. Total business entities are around 1.75 million.
- IT Asset Refresh Cycle: The annual refresh rate for enterprise PCs, laptops, and servers is estimated at around 20%. Based on Taiwan’s business IT assets (several million PCs), the annual volume of discarded storage media (HDD/SSD) is assumed to be 1.5–2 million units.
- Physical Destruction Ratio: Of all discarded media, 40–50% is conservatively estimated to require physical destruction due to PDPA compliance and confidential data handling (the remainder can use software wiping or resale) → approximately 800,000–1 million media units per year require physical destruction.
-
Service Formats:
- BPO Services: Outsourced on-site/off-site destruction by service providers (including transportation, certificate issuance, and recycling).
- Destruction Machine Rental: Rental of equipment (degausser, crusher, shredder) for customers or their contractors to perform on-site destruction.
- Unit Price: NT$130–230 per media (average NT$180–200 for drop-off/off-site/on-site; approx. USD 6–7).
- Target Volume: 800,000–1 million units annually.
- Estimated Market Size: NT$150–250 million (USD 4.7–7.8 million).
- Growth Drivers: Expansion of data centers (Taiwan data center market growing at CAGR >12%), AI/cloud migration increasing on-premises asset disposal.
- Primarily used by high-volume customers (financial institutions, large tech firms, data center operators). Assumed to represent 10–20% of the BPO market.
- Rental Price Example: Short-term rental of one set (degausser + crusher + shredder) costs tens of thousands of NT$ (including transport and installation).
- Estimated Market Size: NT$30–70 million (USD 0.9–2.2 million).
- Demand: Driven by Japanese manufacturers (e.g., Nitto Horukamu) exported equipment used for on-site destruction needs.
- Total: NT$180–320 million (USD 5.6–10 million).
- Positioned as part of the broader IT Asset Disposition (ITAD) market. The data destruction segment typically accounts for a significant portion of global ITAD (approx. USD 20 billion globally, with data destruction representing 1/4–1/3).
- Data center/server market expansion (projected CAGR 9–19% from 2025 onward).
- Strengthened PDPA enforcement and rising cybersecurity awareness.
- Data explosion from AI/semiconductor industries → increased disposal demand.
- Asia-Pacific ITAD market growth (CAGR ~9%), benefiting Taiwan.
- Many SMEs opt for low-cost software wiping; physical destruction market is concentrated among large enterprises and regulated industries.
- Price competition and cloud migration may reduce physical media volumes.
- Due to the lack of official statistics, this is a conservative estimate based on enterprise numbers, refresh rates, and unit prices (±30% margin with field research).
Additional Estimation: Rental and BPO Demand for Tablet/Smartphone Disassembly Device (TBN-1014HK-H3) in TaiwanThe following adds the specialized market for the TBN-1014HK-H3 (Nitto Horukamu’s on-site disassembly device) to the previous HDD/SSD destruction market (NT$180–320 million).The TBN-1014HK-H3 is a Nitto Horukamu device that safely and quickly (30 seconds–2 minutes per unit) separates touch panels from iPads, Surface tablets, and smartphones using heat and precision jigs. It enables low-risk physical destruction of eMMC/storage, dedicated lithium-ion battery extraction, reusable component recovery, and issuance of destruction certificates. Originally developed for Japan’s GIGA School terminal disposal, it is also applicable to mobile device disposal by Taiwanese enterprises, educational institutions, and public organizations. It supports PDPA compliance, fire safety regulations for batteries, and SDGs/circular economy goals.1. Market Background and Assumptions (Taiwan-Specific)
- Regulatory & Demand Drivers: PDPA mandates proper disposal of personal data on mobile devices (rules for business closure disposal and breach notification). High demand for physical disassembly + destruction in enterprises, healthcare, finance, government, and education. Taiwan is an e-waste leader, but smartphone formal recycling rates remain low (target ~15%), leaving room for secure BPO. Lithium-ion battery safe extraction is also critical for fire safety compliance.
- Mobile Device Scale: Taiwan smartphone shipments ~5 million units in 2025. Enterprise/institutional mobile fleets (BYOD + company-issued) estimated at 500,000–1 million units due to enterprise mobility market growth (CAGR 7.6%). Education sector has tens of thousands of tablets from Ministry of Education digital learning initiatives.
- Refresh/Disposal Cycle: Business use cycle of 2–3 years. Annual enterprise/institutional disposal estimated at 150,000–250,000 units (conservative).
- Physical Disassembly Demand Ratio: 30–50% of discarded devices require specialized disassembly for PDPA compliance, confidential data, and value recovery (batteries/components) → 60,000–120,000 units annually suitable for this device.
- Unit Price: NT$150–250 per unit (disassembly + battery extraction + physical destruction + certificate + recycling; similar or slightly higher than HDD/SSD).
- Target Volume: 60,000–120,000 units annually.
- Estimated Size: NT$90–200 million (USD 2.8–6.3 million).
- Concentrated in education/public institution refreshes and enterprise fleet renewals; on-site BPO demand is strong. Battery recovery can offset costs.
- Targeted at high-volume users (large ITAD providers, government, education, recyclers). Short-term/monthly rental of one TBN-1014HK-H3 set: tens to hundreds of thousands of NT$ (including transport, installation, maintenance).
- Rental share: 15–25% of BPO (multi-unit demand). Sharing rental models can expand access for SMEs.
- Estimated Size: NT$20–50 million (USD 0.6–1.6 million).
- Total: NT$110–250 million (USD 3.4–7.9 million).
- Positioned as an addition to the HDD/SSD market. Mobile devices have higher disposal volumes than HDD/SSD, but specialized disassembly demand makes the segment comparable or slightly smaller.
- Enterprise mobility expansion (BYOD, 5G/IoT) and stricter PDPA enforcement.
- Circular economy push (higher smartphone recycling targets, battery resource recovery). The device’s “tamper-proof disassembly and low-risk processing” provides differentiation.
- Asia-Pacific ITAD growth (mobile segment CAGR ~15%); Taiwan e-waste overall growing at CAGR >15%.
- Continued digital terminal refreshes in education/public sectors.
- Consumer market dominated by low-cost wiping/simple recycling; BPO/rental focused on enterprises and regulated sectors.
- Competition with existing ITAD providers (simple destruction vs. high-value disassembly). Advantage lies in safe battery extraction and component recovery.
- Conservative bottom-up estimate (±30% margin); no GIGA-scale disposal wave in Taiwan, but steady demand from enterprise fleet updates.
Contact Us For inquiries in English or Chinese → E-mail:[email protected] https://www.nittoh-orukamu.com
- Destruction method: Hydraulic pressure up to 8 tons.

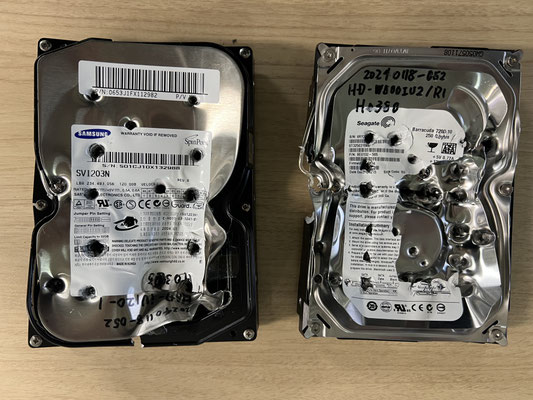

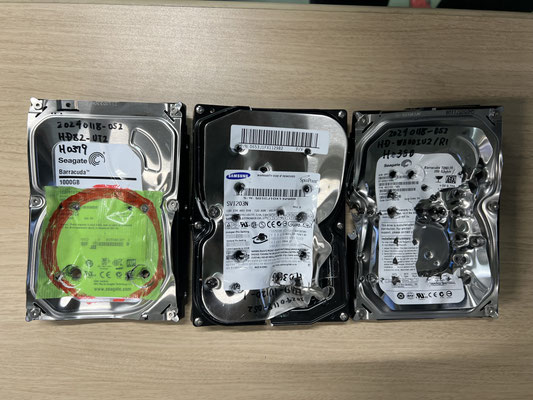

- Operation: 1 cycle (40 holes) or 2 cycles (80 holes) in 15-20 seconds per drive.
- Compliance: Meets DoD, NSA, and NIST standards for physical destruction.
- Export features: Compact design (640x380x520mm, 45kg), multilingual support (Japanese/English), and easy maintenance for international deployment.
- Applications: Ideal for data centers requiring on-site, rapid destruction of failed or decommissioned drives to prevent data breaches.
- Regional scale: Petabytes of storage handled; needs efficient tools for SSD/HDD decommissioning.
- Growth drivers: AI integration, hyperscale expansion, and digital infrastructure investments in India; rapid cloud adoption in Asia; post-pandemic digitalization in Oceania.
- Pain points: Software wiping fails on damaged drives; physical destruction ensures compliance.
|
Feature
|
Nitto CrushBox DB-80SSD-E
|
|SEM Model 0101 Crusher with SSD Kit
|
｜Proton T-4 Degausser + Destroyer Combo｜
|
Garner HD-3WXL Degausser + PD-5 Destroyer
|
|
|---|---|---|---|---|---|
|
Destruction Method
|
Hydraulic punch (8 tons, 40-80 holes)
|
Hydraulic crush (up to 20% more power than competitors)
|
Magnetic degauss (15,000 Gauss) + physical shred
|
Degauss + physical bend/crush
|
|
|
Speed
|
15-20 seconds per HDD/SSD
|
~20 seconds per drive
|
Degauss: Instant; Destroy: 10-15 seconds
|
Degauss: 9 seconds; Destroy: 18 seconds
|
|
|
Media Compatibility
|
2.5" HDD/SSD, eMedia (with adapters)
|
HDD/SSD, including enterprise rails
|
HDD/SSD, tapes, failed drives
|
HDD/SSD, tapes
|
|
|
Compliance
|
|
NSA/CSS EPL, NIST SP-800-88
|
NSA/DoD, NIST
|
NSA/CSS EPL, NIST
|
|
|
Unique Advantages
|
Ultra-compact for data center space; Low maintenance; Cost-effective for export
|
High torque for enterprise SSDs; Scalable combos
|
Works on failed drives; On-site chain of custody
|
High-volume degaussing; Portable
|
|
|
Disadvantages vs. Nitto
|
Slower for bulk; Bulkier design
|
More expensive; Less multilingual support
|
Requires combo (degauss + destroy) increasing cost
|
Slower overall process; Higher power consumption
|
|
|
Price Range (USD)
|
$5,000-7,000
|
$6,000-8,500
|
$7,000-10,000 (combo)
|
$8,000-12,000 (combo)
|
|
|
Data Center Suitability
|
Excellent for onsite destruction needs in growing markets; Fast cycle for high throughput
|
Good for US govt. contracts; Customizable
|
Strong for compliance-heavy environments
|
Preferred for magnetic media focus
|
- Targeting Key Regions: Focus on hyperscalers and colocation providers in Asia (e.g., China, Japan, South Korea), India (e.g., Mumbai, Chennai), and Oceania (e.g., Sydney, Melbourne, Auckland). Demonstrate compliance with local DBD destruction processes.
- Regional Approach: Export via distributors in target regions; Obtain certifications for local standards (e.g., India's data sovereignty requirements).
- Marketing: Webinars on NIST compliance; Case studies from existing users; Trade shows (e.g., Data Centre World Asia).
- Pricing & Support: Competitive pricing with volume discounts; 1-year warranty, training, and remote support.
- Timeline: Q1 2026: Market research/refinement; Q2: Pilot sales; Q3-Q4: Full rollout.
- Revenue Projection: Aim for 500 units in Year 1 ($3M revenue), scaling to 2,000 by Year 3, leveraging regional growth.
Contact UsFor inquiries in English or Chinese → E-mail:[email protected] https://www.nittoh-orukamu.com
Proposal: Global IT Asset Circular Business Model
～Data
Center Specialized "Self-Service Physical Destruction + Resource Recovery"～Nittoh Zoki / Nittoh Horukamu (providing the CrushBox series), Company T
(global ITAD network, collection/refining/certified maintenance), and Company S (overall coordination/resource trading) collaborate to build and propose a circular economy model. This enables
data center (DC) operators to perform high-security physical destruction in-house, converting disposal costs into revenue from resource sales.With the launch of the new product "DB-HM80SSD" in
spring 2026, we will accelerate full-scale entry into the DC market. Long-term warranty, maintenance, and final disposal collection maximize reliability, significantly strengthening your data
erasure and asset management processes.Overall Business Model Structure
Your DC operator purchases and installs the CrushBox in-house, completing data erasure and physical destruction within your own facility. Company T handles residue collection, refining, and
certified on-site maintenance. Nittoh Horukamu leads equipment supply and remote maintenance. Company S manages overall coordination and resource trading flows.Upstream (Equipment Introduction
& Sales):
Nittoh Horukamu sells the DC-specialized new product "DB-HM80SSD" (shipment starting spring 2026) via purchase contract. Installed
permanently in dedicated DC space, it achieves ultra-fine destruction (2mm or smaller pulverization, etc.) compliant with NSA/NIST standards. Nittoh Horukamu provides initial installation
training.Key Features of the New Product DB-HM80SSD (Optimized for Data Center Use)
- Zero oil leakage countermeasures (ultra-high-pressure double-acting hydraulic pump & special piping unit; metal special piping changed for complete prevention of external oil leaks) as standard equipment. Maintains clean DC facility environment (zero risk of oil leakage to exterior).
- High-durability, low-noise magnet motor adopted for continuous operation support.

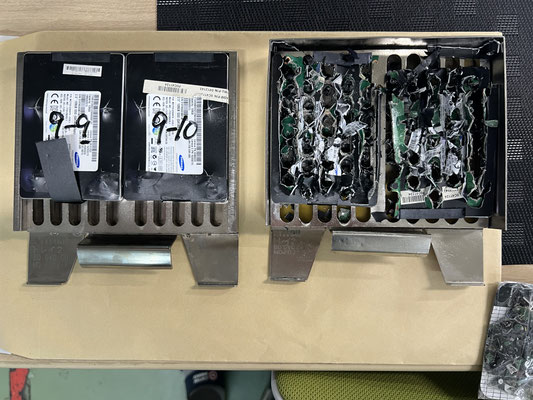

- Compatible with both SSD and HDD; 80-point destruction mode enhances certainty.
- Utilizes Nittoh's proprietary HMC (Hydraulic Motion Control) technology to balance destruction precision and operational safety.
Warranty & Maintenance Specifications: 5-year warranty. Oil changes performed on a unit basis (designed for lifetime/ultimate disposal at 7 years). Final
waste products (main unit & replacement units) are collected by Company T and properly processed via resource recovery route.Midstream (Operation & Maintenance):
Your staff perform destruction in-house. Nittoh Horukamu leads remote maintenance (diagnosis, troubleshooting, operation guidance). Company T, after receiving on-site maintenance training from
Nittoh Horukamu, operates as a certified provider for on-site maintenance and repairs (including oil unit exchanges). Digital issuance of destruction certificates is automated and supported.
Company S handles contract and logistics coordination. At final disposal, Company T collects the entire unit.Downstream (Resource Recovery & Re-resourceization):
Company T periodically collects destruction residues. Precious metals (gold, silver, copper, palladium, etc.) are extracted and sold at advanced refining facilities (e.g., Singapore). A portion
of sales proceeds is returned to you, offsetting disposal costs. Final waste products (after 7 years) are also collected by Company T and processed via refining route for complete
circularity.Overall Flow: Your DC → DB-HM80SSD destruction (in-house facility) → Residue collection (Company
T) → Refining & sales (Company S coordination) → Revenue return (to you).
Maintenance is globally supported by Nittoh Horukamu (remote + unit exchange guidance) + Company T (certified on-site + final disposal collection).Optimized Role Division
|
Role |
Provided Value |
Specific Responsibilities |
|
Nittoh Zoki / Nittoh Horukamu (Equipment Provider & Maintenance Leader) |
Expertise in physical destruction technology and maintenance |
- Sales of DC-specialized new product "DB-HM80SSD" (spring 2026 shipment start; purchase contract & customization support) - Zero oil leakage countermeasures for DC environment compatibility - DC installation guidelines & initial training provision - Remote maintenance (remote diagnosis, software updates, operation support) - On-site maintenance training for Company T & certification granting (including oil unit exchange) - 5-year warranty support, unit-based oil exchange guidance, final disposal collection coordination - On-site maintenance/repair as needed (in collaboration with Company T) - Technical advice to optimize residue particle size for easier re-resourceization |
|
Company T (Resource Collection/Refining/Certified Maintenance Provider) |
Global ITAD network operations and on-site maintenance capabilities |
- After Nittoh Horukamu training, deploys as certified on-site maintenance provider for CrushBox (including DB-HM80SSD) across 20+ countries (on-site support incl. oil unit exchange) - Safe collection & transport of post-destruction residues - Resource extraction at refining facilities (e.g., Singapore base) - Collection & refining processing of final waste products (7-year expired units) - Support for issuance of internationally compliant destruction certificates (digital log integration with Nittoh Horukamu) |
|
Company S (Overall Coordination & Resource Trading) |
Expertise in metal resource business |
- Conclusion & coordination of tripartite comprehensive contracts (incl. training/certification scheme, new product launch, warranty/final disposal collection) - Logistics optimization (from residue transport to final disposal collection route) - Management of valuable material sales proceeds distribution (building cost-return model to your company) - Market trend analysis & business expansion strategy from urban mining perspective |
Key Strengths of This Model (Benefits to Your DC Operator)
- Ultimate security enhancement: Destruction completed in-house → zero external transport risk. Strengthens GDPR/HIPAA compliance.
- Monetization of disposal costs: Residue sales proceeds returned (e.g., thousands of yen equivalent per 1g of gold). Targeting 90%+ recovery rate via Company T's refining efficiency for net positive cost conversion.
- Improved maintenance reliability & global support: Nittoh Horukamu remote + Company T certified on-site for fast/local response. 5-year warranty & oil unit exchange reduce operational burden. Maximizes equipment uptime and minimizes DC operation interruptions.
- Exceptional DC environment compatibility: Zero oil leakage countermeasures eliminate facility contamination risk. Achieves clean operations.
- Long-term operation & environmental consideration: 7-year lifetime design; final waste collected & recycled for complete circularity. Strong contribution to ESG/SDGs reporting.
- Scalability: Company T's global bases & certified maintenance network enable deployment centered on Asia/Oceania. NSA/NIST-compliant destruction suits strict regulatory markets.
- Asset accounting benefits (in case of purchase): Equipment recorded as fixed assets. Enjoy tax advantages via depreciation while optimizing TCO through long-term operation.
Specific Measures: Early Deployment Strategy (Centered on New Product Launch)
Priority regions: Southeast Asia (growing DC market), Australia/New Zealand (advanced regulatory markets/data sovereignty strengthening), India (rapidly growing DC market). Early integration of
Company T's certified maintenance rollout for swift introduction support to you.Step 1: Pilot Introduction (Spring–Summer 2026)
Targets: Domestic Japan DCs and Singapore DCs (Company T headquarters).
Measures: Prior provision of DB-HM80SSD via purchase contract. Nittoh Horukamu conducts training for Company T; immediate on-site maintenance start post-certification (5-year warranty & oil
unit exchange system). Company S presents sales proceeds simulation.
Goal: Delivery to designated sites in first year; residue collection volume of 1 ton+.Step 2: Regulatory Compliance Investigation & Regional Expansion (Summer–End 2026)
Australia/New Zealand: Confirm APRA/ISM compliance; partner with local entities. Deploy Company T certified maintenance in Oceania bases.
Asia (Singapore/Indonesia/India): Confirm IMDA compliance (Singapore), MeitY/DPDP Act compliance (India); immediate application of Company T existing bases/certified maintenance.
Measures: Company S leads local legal investigations. Proposals segmented by industry (financial, cloud vendors, government, hyperscale DCs).Step 3: Revenue Enhancement (2027 Onward)
Packaging: DB-HM80SSD purchase + Nittoh Horukamu remote maintenance + Company T certified on-site maintenance & collection (annual contract for maintenance/collection services, incl.
warranty/final disposal collection).
Marketing: Leverage Company S channels to approach global financial/government/cloud DCs. Emphasize new product's zero oil leakage countermeasures + long-term warranty/disposal collection.
Highlight asset accounting benefits from purchase.
KPI: Device sales scale of ¥600 million, resource sales proceeds scale of ¥300 million, 95% recycling rate achievement.This proposal offers a comprehensive solution that simultaneously achieves
enhanced data security, cost optimization, and ESG compliance for your company. We sincerely request your favorable consideration. Thank you very much.
提案：グローバルIT資産循環型ビジネスモデル～データセンター特化型「セルフサービス物理破壊＋資源回収」～日東造機 / 日東ホルカム（CrushBoxシリーズ提供）、Company T（グローバルITADネットワーク・回収/精錬/認定メンテナンス）、Company
S（全体コーディネーション・資源トレーディング）の3社が連携し、循環経済モデルを構築・提案します。これにより、データセンター（DC）事業者は高セキュリティの物理破壊を自社施設内で実施でき、廃棄コストを資源販売収益に転換することが可能となります。2026年春に新製品「DB-HM80SSD」を発売し、DC市場への本格参入を加速します。長期保証・メンテナンス・最終廃棄回収により信頼性を最大化し、貴社のデータ消去および資産管理プロセスを大幅に強化します。全体ビジネスモデル構造貴社DC事業者がCrushBoxを購入・自社施設内に設置し、データ消去・物理破壊を自施設内で完結します。Company
Tが残渣回収・精錬・認定オンサイトメンテナンスを担当、日東ホルカムが機器供給およびリモートメンテナンスを主導、Company Sが全体調整および資源取引フローを管理します。上流（機器導入・販売）
日東ホルカムがDC特化新製品「DB-HM80SSD」（2026年春出荷開始）を購入契約にて販売。専用DCスペースに恒久設置し、NSA/NIST基準準拠の超微細破壊（2mm以下粉砕など）を実現。日東ホルカムが初期設置研修を実施。新製品DB-HM80SSDの主な特長（DC用途最適化）
- 油漏れゼロ対策（超高圧複動油圧ポンプ＋特殊配管ユニット、金属特殊配管変更により外部への油漏れを完全防止）を標準装備。クリーンなDC施設環境を維持（外部油漏れリスクゼロ）。
- 高耐久・低騒音マグネットモーター採用により連続稼働対応。
- SSD・HDD両対応、80点破壊モードで確実性を向上。
- 日東独自のHMC（Hydraulic Motion Control）技術により、破壊精度と運用安全性を両立。
保証・メンテナンス仕様：5年保証。オイル交換はユニット単位（設計寿命/最終廃棄7年）。最終廃棄物（本体および交換ユニット）はCompany Tが回収し、資源回収ルートで適正処理。中流（運用・メンテナンス）
貴社スタッフが自施設内で破壊を実施。日東ホルカムがリモートメンテナンス（診断・トラブルシューティング・運用指導）を主導。Company
Tは日東ホルカムからのオンサイトメンテナンス研修受講後、認定プロバイダとしてオンサイトメンテナンス・修理（オイルユニット交換含む）を実施。破壊証明書のデジタル自動発行をサポート。Company Sが契約・物流調整を担当。最終廃棄時にはCompany Tが本体全体を回収。下流（資源回収・再資源化）
Company Tが定期的に破壊残渣を回収。貴金属（金・銀・銅・パラジウムなど）を高度精錬施設（例：シンガポール拠点）で抽出・販売。売上の一部を貴社に還元し、廃棄コストを相殺。7年後の最終廃棄物もCompany
Tが回収し、精錬ルートで完全循環を実現。全体フロー：貴社DC → DB-HM80SSD破壊（自社施設内） → 残渣回収（Company T） → 精錬・販売（Company S調整） →
収益還元（貴社へ）。
メンテナンスは日東ホルカム（リモート＋ユニット交換指導）＋Company T（認定オンサイト＋最終廃棄回収）によりグローバル対応。最適化された役割分担
|
役割 |
提供価値 |
具体的な責任 |
|
日東造機 / 日東ホルカム（機器提供・メンテナンスリーダー） |
物理破壊技術・メンテナンスの専門性 |
- DC特化新製品「DB-HM80SSD」の販売（2026年春出荷開始、購入契約・カスタマイズ支援） - DC環境対応油漏れゼロ対策 - DC設置ガイドライン・初期研修提供 - リモートメンテナンス（遠隔診断、ソフト更新、運用支援） - Company Tへのオンサイトメンテナンス研修・認定付与（オイルユニット交換含む） - 5年保証支援、ユニット単位オイル交換指導、最終廃棄回収調整 - 必要に応じたオンサイトメンテナンス/修理（Company Tと連携） - 残渣粒子サイズ最適化のための技術アドバイス（再資源化しやすく） |
|
Company T（資源回収/精錬/認定メンテナンス提供） |
グローバルITADネットワーク・オンサイトメンテナンス能力 |
- 日東ホルカム研修後、CrushBox（DB-HM80SSD含む）の認定オンサイトメンテナンスプロバイダとして20カ国以上展開（オンサイト支援含むオイルユニット交換） - 破壊後残渣の安全回収・輸送 - 精錬施設（例：シンガポール拠点）での資源抽出 - 7年経過最終廃棄物の回収・精錬処理 - 国際基準準拠破壊証明書発行支援（日東ホルカムとのデジタルログ連携） |
|
Company S（全体調整・資源トレーディング） |
金属資源ビジネスの専門性 |
- 三社包括契約の締結・調整（研修/認定スキーム、新製品ローンチ、保証/最終廃棄回収含む） - 物流最適化（残渣輸送～最終廃棄回収ルート） - 有価物売上金の分配管理（貴社へのコスト還元モデル構築） - 都市鉱山視点での市場動向分析・事業拡大戦略 |
本モデルの主な強み（貴社DC事業者へのメリット）
- 究極のセキュリティ強化：自社内破壊 → 外部輸送リスクゼロ。GDPR/HIPAA準拠を強化。
- 廃棄コストの収益化：残渣売上還元（例：金1gあたり数千円相当）。Company Tの精錬効率で90%以上の回収率を目指し、正味プラスコスト転換。
- メンテナンス信頼性・グローバル対応の向上：日東ホルカムリモート＋Company T認定オンサイトで迅速・現地対応。5年保証・オイルユニット交換で運用負荷低減。機器稼働率最大化、DC運用中断最小化。
- 抜群のDC環境適合性：油漏れゼロ対策で施設汚染リスク排除。クリーン運用を実現。
- 長期運用・環境配慮：7年設計寿命、最終廃棄物も回収・リサイクルで完全循環。ESG/SDGs報告に大きく貢献。
- スケーラビリティ：Company Tのグローバル拠点・認定メンテナンス網でアジア/オセアニア中心展開。NSA/NIST準拠で厳格規制市場に適合。
- 資産会計メリット（購入の場合）：機器を固定資産計上。減価償却による税制優遇を受けつつ、長期運用でTCO最適化。
具体策：早期展開戦略（新製品ローンチ中心）優先地域：東南アジア（成長DC市場）、オーストラリア/ニュージーランド（先進規制市場・データ主権強化）、インド（急成長DC市場）。Company Tの認定メンテナンス早期展開で迅速導入支援。Step 1：パイロット導入（2026年春～夏）
対象：国内日本DCおよびシンガポールDC（Company T本社）。
対策：DB-HM80SSDの優先提供（購入契約）。日東ホルカムがCompany Tへ研修実施、認定後即時オンサイトメンテナンス開始（5年保証・オイルユニット交換システム）。Company
Sが売上還元シミュレーション提示。
目標：初年度内指定サイト納入、残渣回収量1トン以上。Step
2：規制適合性調査・地域拡大（2026年夏～年末）
オーストラリア/ニュージーランド：APRA/ISM準拠確認、現地パートナー連携。Company T認定メンテナンスをオセアニア拠点に展開。
アジア（シンガポール/インドネシア/インド）：IMDA準拠（シンガポール）、MeitY/DPDP Act準拠（インド）確認、Company T既存拠点/認定メンテナンス即時適用。
対策：Company S主導で現地法令調査。業種別提案（金融、クラウドベンダー、政府、ハイパースケールDC）。Step 3：収益拡大（2027年以降）
パッケージ：DB-HM80SSD購入＋日東ホルカムリモートメンテナンス＋Company T認定オンサイトメンテナンス・回収（保守/回収年次契約、保証/最終廃棄回収含む）。
マーケティング：Company
Sチャネル活用でグローバル金融/政府/クラウドDCへアプローチ。新製品の油漏れゼロ対策＋長期保証/廃棄回収を強調。購入による資産会計メリットを訴求。
KPI：機器販売規模6億円、資源売上規模3億円、95%リサイクル率達成。本提案は、データセキュリティ強化・コスト最適化・ESG準拠を同時に実現する包括的ソリューションです。
貴社のご検討を心よりお願い申し上げます。ありがとうございました。
This page introduces export products.
We deliver wordwide with DHL
Please contact us by e-mail : [email protected]
This is an on-site HDD/SSD/eMMC destruction machine that crushes SSDs into pieces smaller than 2mm square.
We will deliver directly to Japanese corporations overseas using DDP export via DHL etc.
Bank Information:
Bank name: The Chiba Bank, Ltd
Branch Name: Mobara Higashi Branch
Name: CHBAJPJT
Account Name: NITTOH-HORUKAMU CO.,LTD
Account Number: 3487755
Nittoh Horukamu Disc Breaker SeriesProduct Overview
The HDD DESTRYER is a high-performance hydraulic data destruction device engineered for the physical destruction of computer storage media. Utilizing powerful hydraulic force, it permanently renders data unrecoverable by crushing, bending, and mangling platters and components beyond any possibility of recovery.Key Features & Benefits
- Hydraulic Power Technology — Delivers immense crushing force for fast, thorough destruction of hard disk drives (HDDs).
- Targeted for Magnetic Media — Specifically designed for 3.5" and 2.5" HDDs (Note: Not compatible with reading 2.5" SSDs or HDDs; the following media are NOT supported: Floppy disks, M/O, ZIP, mSATA SSD, M.2 SSD/flash, CD/DVD/Blu-ray, USB drives, CF/SD cards, smartphones (batteries prohibited), etc.)
- Secure & Compliant — Ensures irreversible physical damage that meets high-security data sanitization standards (ideal for NSA/CSS-style compliance when paired with degaussing where required).
- User-Friendly Operation — Intuitive tray insertion/removal, simple controls, and safety features to minimize risk during use.
- Reliable for Enterprise Use — Robust construction for continuous operation in data centers, offices, and secure disposal environments.
Important Safety Instructions
Read this manual carefully before use. Observe all warnings to prevent serious injury or equipment damage.Hazard Indicators Used in This Catalog/Manual
Meanings of Pictorial SymbolsDANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or property damage only.Before Use
- Verify package contents and power supply.
- Confirm compatible media and maximum capacity per cycle.
- Note precautions for continuous operation and low-temperature environments.
- Easy media loading via tray system.
- Select mode and initiate destruction cycle.
- Quick insertion/removal for efficient workflow.
- Standard warranty period applies (manufacturing defects only).
- Exclusions: Misuse, unauthorized modification, or improper handling.
- Contact Nitto Horukamu for inquiries or service.
The DB60PRO-E-HO is a professional-grade HDD/SSD destruction machine that comes with the DB-60PR-E convenient safety pack.
HDDs are normally crushed using four destruction shafts, but by moving the destruction location, it is possible to destroy up to 16 locations.
Manufactured by
Contact Us
For inquiries in English or Chinese → E-mail:[email protected]
Electronic storage media degausser AND HDD/LTO/SSD Destroyer
The process begins with the delivery of the combined demagnetization and physical destruction equipment to the customer's site. Nittoh on-site degaussing and destruction service applies an electromagnetic pulse of 10,600 oersteds, nearly twice the coercive force level of today's disk drives, to erase all information on data storage devices and even V-shape them. Press in 4 places while folding it.
No.1 Best Selling Destroyer In Japan And Asia!
On-site data Destruction and combined destruction rental services for HDDs and SSDs, etc. Designed to meet the needs of businesses in highly regulated industries, our on-site data destruction and erasure solutions far exceed industry standards.
Completely delete your drive data.
Degauss & Destroy
Your data is invaluable. Most organisations go through great lengths to take the utmost care in protecting the integrity and security of their business data. The substantial challenge is managing the data and IT assets that are nearing the end of their lifespans where computers, IT peripherals and storage devices eventually become outdated. Only certified physical destruction is 100% effective in securing the data integrity.
Your organisation is vulnerable when old storage media such as hard drives, USB, SSD, tapes and CDs containing critical information are not proven destroyed.
Dear valued customer,
I want to inform you that due to rising costs for raw materials, our company was faced with the need to raise the price of all products with 10%, effective May 1st, 2022.
We hope to continue our excellent relationship with our clients, and assure you our quality of service will reflect a similar increase.
Should you have any questions regarding our services, please contact our office at TEL+81-475-20-1280
E-mail:[email protected]
Kind regards,
Manufactured by
Contact Us
For inquiries in English or Chinese → E-mail:[email protected]
Manual HDD and SSD destruction
Manual Disk Destroyer
export
With this manual hard disk destroyer you
can manually and easily destroy all
standard hard drives.
No power is needed.HDB-30V-HO
Desktop HDD/SSD Terminator
With the strong destructive power of this product, a hard drive can be destroyed easily.
Designed to be Light and Handy
The product is designed to be light and handy and can be carried around conveniently. It is a great help for destroying hard drives.
HDB-30V-HOE
This site is a mail order for Japanese companies in Thailand, Taiwan, Singapore, Vietnam and South Korea. HDB-30V-HE is an export product that includes HDB-30V (standard product) and HK-10MA-AH1 safety pack. Free operation explanation support by Zoom is included.
￥458,000
税込 / 送料無料
次の地域は送料無料: 日本
- 16 kg
- 在庫切れ
No Power Source Needed, with Easy Pressurization
With the hydraulic design, destroying a hard drive can be effortless.
Safety
The valve is designed with a safety lock.
Powerful Destruction
Two holes are drilled at the same time.
HDB-30V-HE is manual hard drive destroyer
Manual HDD/SSD Destroyer
Crush Box Hard disc drive and media physical destroyer
No.1 best selling destroyer in Japan and Asia Pacific !
Compact portable manual HDD/SSD model with 6 tons hydraulic power with 2 shafts.
Operation System:2 holes through the platters of Hard drive & SSD + V shape.
The Crush Box HDB-30V-HE is a hard drive destroyer/crusher, capable of physically destroying various media, including hard drives, SSDs/CDs/DVDs, cell phones, and floppy disks, ensuring that the data on the media is completely unreadable. Our fast & reliable solutions are ideal for environment-friendly and low-cost media disposal, parts recycling and data loss prevention.
Images & Video
HMC (Hydro-Motion Control)
The HMC (Hydro-motion mechanism) of the Crush Box Series (DB80SSD-E/DB60PRO-E and HDB-30V-E) is a unique, patented technology. The Crush Box HMC will automatically shut off individual pins when it detects the pin has hit a hard surface, such as the magnet inside a hard drive. This HMC dramatically reduces the TCO (Total Cost of Ownership).
No.1 Best Selling Destroyer In Japan And Asia!
Completely delete your drive data.
Crush Box It is the best solution for protecting leaking your important data from your PC
Crush Box can completely destroy the medias such as hard disc drives, SSD, magnetic tapes and mobile phones to protect leaking your data.
Features of the HDD Disk Destroyer Crush Box: Model HDB-30V-E-HE
- Destroys hard disks and prevents the data from being recovered
- Easy to use - it destroys hard disks with in 20 seconds
- Thanks to the energy-conscious design, energy consumption in stand-by mode is just one watt
- It assures aging resistance and thousands of passes with its high-performance destruct mechanism
Overview:
- Model: HDD Disk Destroyer Crush Box
- Target Media: Notebooks, Desktops, Hard Disk Drives, SSD, FD, MO, ZIP Files, Mobile Phones, PDA, CD / DVD / BD / HD-DVD
- Pressure: MAX 6 tons
Crush Box HDB30V-HE
World-First manual bending Hard Drive and Solid state drive Destroyer
New Crush Box HDB-30V-HE is World–first manual hard drive physical destruction machine that can bend and mangle the hard drive and its internal components including the platters by two destruction shafts.
NSA/CSS EPL, Hard Drive Destruction Devices 22 April 2020Hard Drive Bending Devices
Hard Drive Punch Devices.
HDB-30V-E is designed to destroy drive conforming NSA guideline.
Crush Box HDB-30V-HE
Market:Offices,Medical,Army,DoD,server room and etc.
Main feature of HDB-30V-HE
①Manual operation
HDB-30V-HE is manual destroyer
It is very convenient for small volume destruction in the office and on-site destruction service.
②Bending and mangling
HDB-30V-HE is the world-First manual destruction
Machine that can bend and punch hard drives
and its internal components including data platters
making two holes with 3 tons hydraulic power.
③Portable
HDB-30V-HE is portable machine that you can to
Anywhere with soft carry bag.
④No power required
HDB-30V-HE does not need electricity.
It is very helpful for the on-site service at the customer.
Overview:
- Model: HDD Disk Destroyer Crush Box
- Target Media: Notebooks, Desktops, Hard Disk Drives, SSD, FD, MO, ZIP Files, Mobile Phones, PDA, CD / DVD / BD / HD-DVD
- Pressure: MAX 6 tons
Manufactured by
Nittoh Horukamu Co., Ltd.
585Takashi,Mobara-Shi,Chiba-Ken, 297-0029, JAPAN
TEL: +81-(0)475 1280
Manufactured by
Contact Us
No.1 Best Selling Destroyer In Japan And Asia!
Completely delete your drive data.
Contact Us
For inquiries in English or Chinese → E-mail:[email protected]
DB-60PRO
Full Automatic Hard Drive Terminator
Destroying a hard drive simply by pressing one button
Drilling four holes at one time for destruction
The powerful 6-ton crushing force, a hard drive can be destroyed more quickly and the information in it is more secured.
Designing with a transparent secure door
The product is designed with a transparent secure door lock. The destruction process cannot be initiated unless the door is closed. And the destruction process can be seen from the outside.
Counter display
There is a counter for batch destruction management. The number of hard drives destroyed can be obtained easily through the counter display.
Emergency stop button
This product comes with an emergency stop button, so that the users can run the destruction operation without worries.
Modle Crushbox DB-60pro-E-HO Professional Hard Disk Destroyers
Modle No.：DB-60pro-E
and DB-60PRO-E-HO
●Professional Hard Disk Destroyers and SSD Crushers.
● Easy operation, Destroy HDD in 10/ sec.
● Complies with NSA & NIST standard.
●Hard Disk Drive and storage media physical destroyer.
●Destruction method: Automatic Hydraulic Pressure.
●Application of pressure: 6 ton.
●Operation System: 4 holes through the Platters of Hard drive & SSD + V shape.
●Destruction Time: 6/sec..
●MAX number of contiunous operation: 200 units.
●MAX number of operation per day: 500 units.
●Dimensions (WxHxDmm): 220 x 460 x 380 mm
●Weight (kg): 37kgs
The DB60PRO-E-HO is a professional-grade HDD/SSD destruction machine that comes with the DB-60PR-E convenient safety pack.
HDDs are normally crushed using four destruction shafts, but by moving the destruction location, it is possible to destroy up to 16 locations.

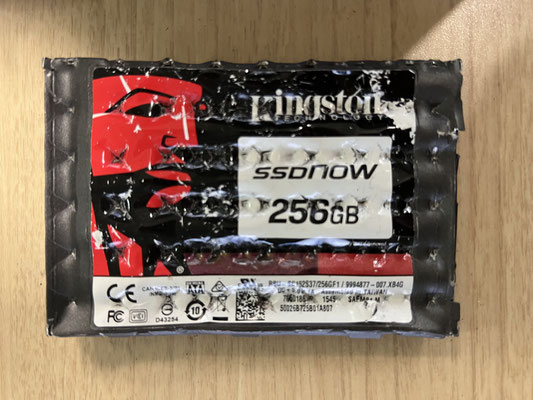

Please see the photo.

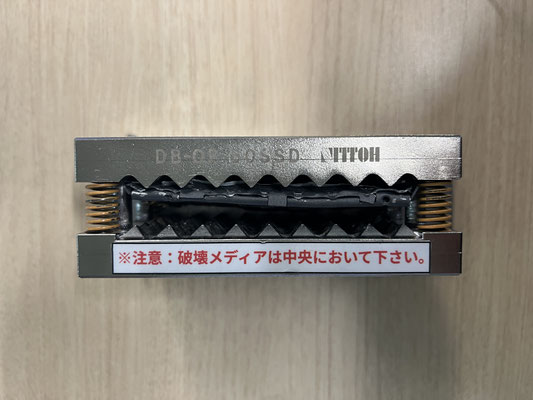

Modle Crushbox DB-80SSD-E-HO
Easy operation Hard Disk (2.5)&SSD Destroyer.
Modele No,:DB-80SSD-E
and DB-80SSD-E-HO
●Destroy HDD/SSD in 15～ 20/ sec.
●Complies with NSA & NIST standard.
●2.5″HDD / SSD and storage media physical
●destroyer, CD/DVD/Smart Phone/SD/USB are available destruction with optional adapter.
●Destruction method: Automatic Hydraulic Pressure.
●Application of pressure: 8 tons.
●Operation System: 1 cycle: 40 holes / 2 cycle: 80 holes.
●Destruction Time: 15～20/sec..
●Supported languages:Japanes/English/
●MAX number of contiunous operation: 400 units.
●MAX number of operation per day: 1000 units.
●Dimensions (WxHxDmm): 305 x 220 x 380 mm
●Weight (kg): 32kgs
DB-60PRO-E-HS
HDD＆SSD Destroyer
Compact and portable SSD destroyer – Designed for facilities such as data centers that need to destroy large volumes of SSDs on-site, before they leave their secure facility.
Desktop data destruction solution. Utilizing a proprietary hydraulic power unit and patented crushing plates with arrays of 80 interlocking razor sharp hardened steel teeth, the DB60PRO-HS SSD delivers 12tons of destructive forces to the SSD media and their ceramic memory chips that are punctured, crushed, serrated and decimated on both sides in less than 10 seconds.
In a hard drive, data is read from or written to a cylindrical array of rigid platters typically rotating between 5,400 and 15,000 RPM. The read head floats on a microscopically thin boundary layer of air and never comes in contact with the platters, the consequences of which would be disastrous for the read head and the surface of the drive. Minor imperfections of the surface could cause the head to crash into the surface.
If the surface of a hard drive is damaged, abraded or warped by any means, it becomes almost impossible for data to be recovered from the surface of the magnetic media. Moreover, if all the platters in the hard drive are crushed (pancaked) together, warped and mangled, both the upper and lower surfaces of each platter will be severely disfigured, rendering data recovery virtually impossible. The read head simply cannot follow the distorted contours and scarified surface of the platters. In addition, data is so tightly packed on to the surface of the platter in modern hard drives that not even Burrowing Electron Microscope (BEM) technology is capable of recovering data from a destroyed surface.
Physical deformation involves the use of tools such as sledge hammers, drills, vices, etc., to cause extreme physical damage to a storage device in order to delay, impede, or discourage an attacker from attempting to recover data from it. In the case of magnetic disks, the effectiveness of this method depends on the amount of damage inflicted on the surface of each platter (including warping of the flat surface) to make it very difficult to do a laboratory analysis. Heavily damaged hard disks with deformed disk surfaces are beyond any reasonable hope of recovery, even to adversaries with access to sophisticated laboratory analysis facilities.
#Storage media #Storage Crusher #HDD Crusher #SSD Crusher
#Storage media #Storage Crusher #HDD Crusher #SSD Crusher
